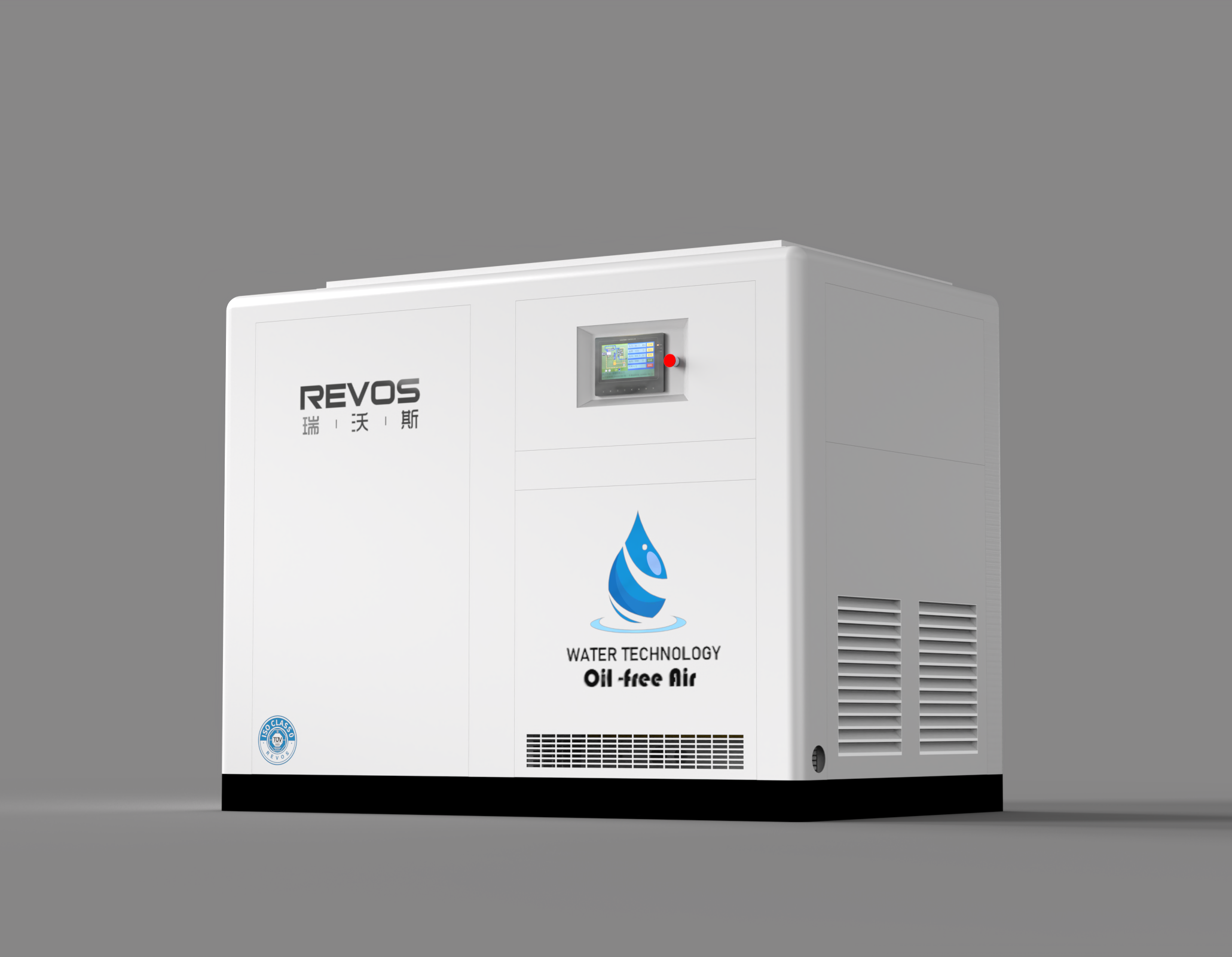

(RWV55A) 55KW水润滑螺杆空压机

OIL-FREE WATER-LUBRICATEDSCREW COMPRESSOR

永磁变频无油水润滑螺杆空压机

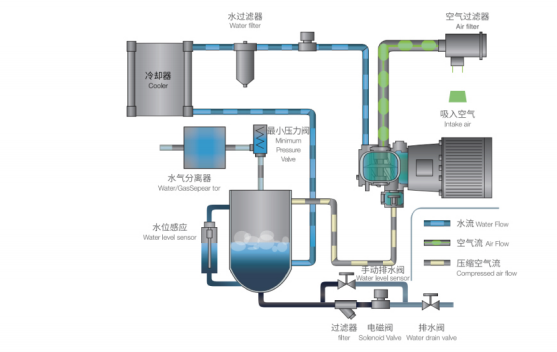

压缩机组系统流程图

COMPRESSOR SYSTEM FLOW CHAT

产品优势 Product Advantages

1.智能精密加工工艺让主机运行平稳，确保更低噪音、更小震动及更长使用寿命。The intelligent precision processing tech-nology ensures the smooth operation ofthe main unit, 9uaranteeing lower noise,less vibration anda longer service life.

2.更宽的压力范围:2bar~40bar。运行温度小于50"C，没有被灼伤的风险

Wider pressure range: 2bar to 40barThe operating temperature is less than50?C, and there is no risk of burns.

3.可实现定期自动换水和自动系统清洗功能，压缩机内部更加整洁、卫生。

It can achieve regular automatic waterchange and automatic system cleaningfunetions, making the interior of the com-pressor cleaner andmore hygienic.

4.压缩空气经过润滑水的清洗，更加洁净可以直接用于呼吸使用，饱和压缩空气的更低，压缩空气的含水量比普通干式螺杆空压机平均低25%以上。

Compressed air,after being cleaned withlubricating water, becomes cdleaner andcan be directly used for breathing. Thedew point ofsaturated compressed airislower,and the water content of com-pressed air is on average 25%lower thanthat of ordinary dry screw aircompressors.

5.采用大转子、低转速(3000r/min以内)，没有齿轮箱，采用直连驱动，相比干式无油螺杆(10000r-20000r/min)更低转速，更长寿命。

It adopts a large rotor,low rotationalspeed (within 3000r/min), no gearbox, anddirect drive, Compared with dry oil-freescrews (10,000 rto20,000 r/min), it has alower rotational speed and a longerservice life.

6.采用PLC智能控制，具有自动故障检测及预警、保养提醒、自动保护功能，可远程控制，实现24小时无人值守。

It adopts PLC intelligent control andfeatures automatic fault detection andearly warning, maintenance reminde, andautomatic protectionfunctions. It can beremotely controlled to achieve 24-hourunattended operation.
