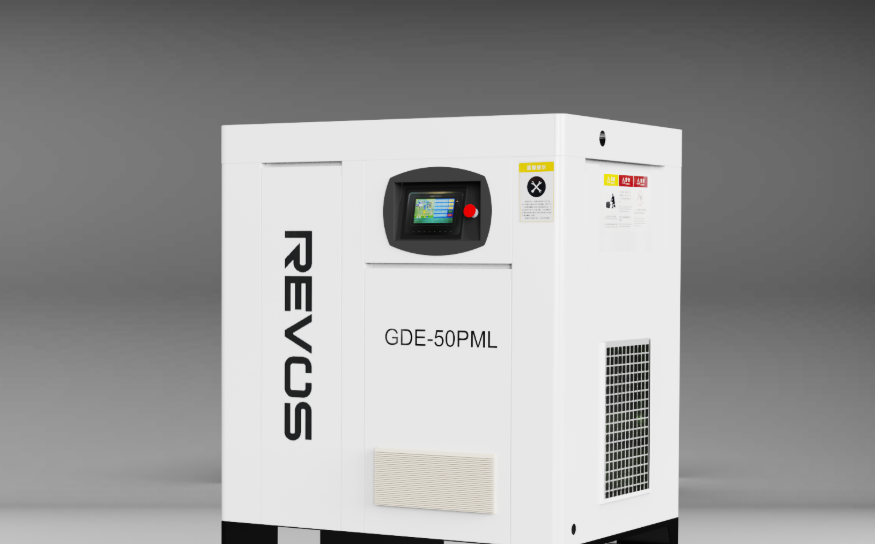

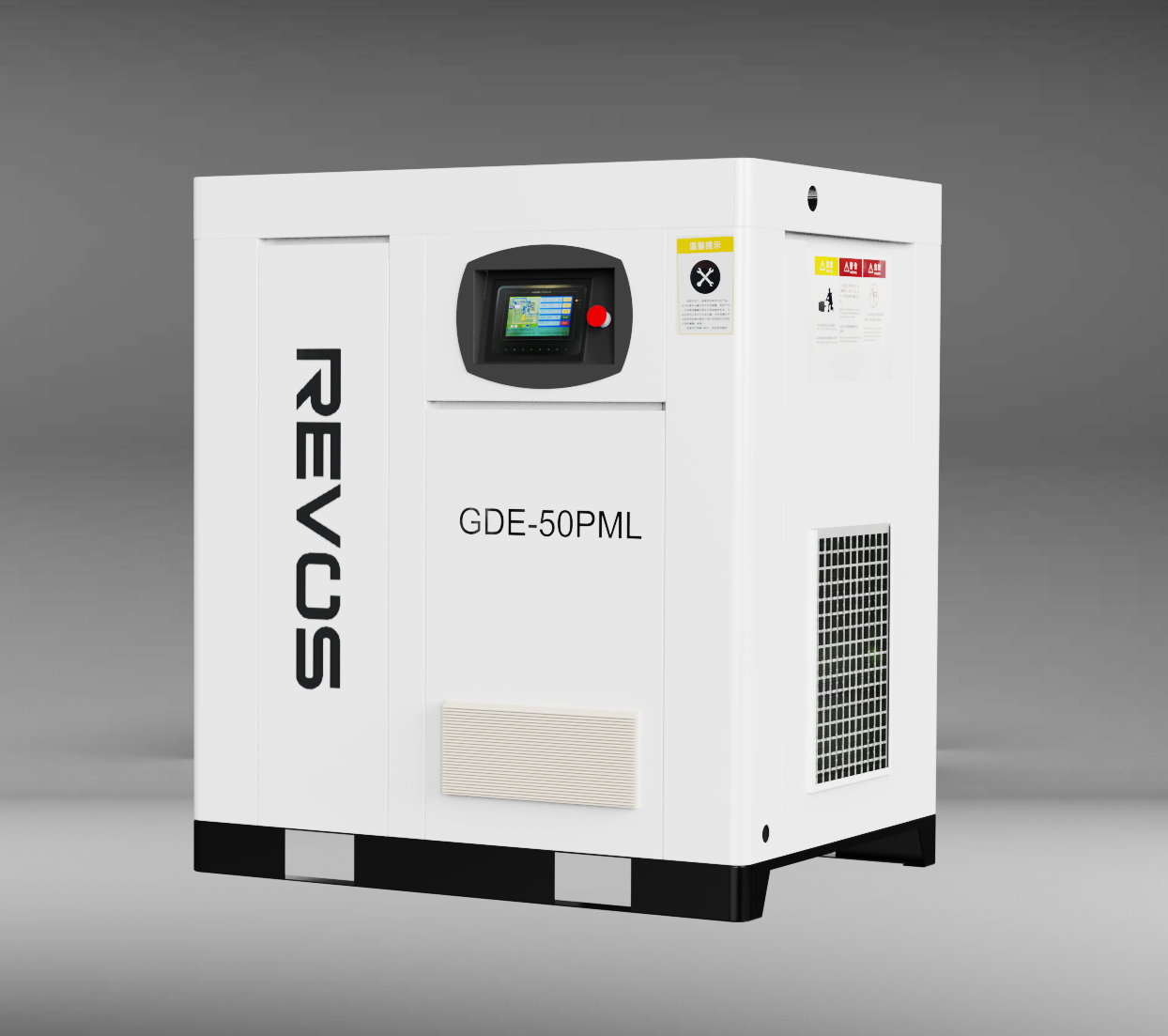

（GDE-50PML）37KW水平双极永磁变频螺杆空压机

37KW水平双极永磁变频螺杆空压机

水平双极永磁变频螺杆空压机，更高效，更节能，较双螺杆空压机节能高达35%，以8000h)台/年计算，每年可节约20万元电费

产品优势 Product Advantages

1、瑞沃斯永磁同步无感电机为IPM同步电机，采用高效钕铁永磁铁，无励磁损耗，经过特殊转了结构设计，很大降低铁损与杂散损耗，整机效率达到IE4标准以上，比三相异步电机效率提高5%-10%，效率因数提高10%-15%以上大漠鹰永磁同步无感电机在20%-120%负载范围内可保持较高的效率与功率因数，功率因数可为1，三相异步电机只能达到0.86，有效降低了线路损耗，轻载节能更为明显，并提高电网利用率。

The REVOS permanent magnet synchronous non inductive motor is an IPM synchronous motor that uses high-efficiency neodymium ironpermanent magnets with no excitation loss. After special structural design, it greatly reduces iron loss and stray loss.The overall efficiencyreaches IE4 standard or above, which is 5%-10% higher than that of three-phase asynchronous motors, and the efficiency factor is increasedby more than 10% -15%,. The Desert Eagle permanent magnet synchronous non inductive motor can maintain high efficiency and powerfactor in the load range of 20%-120%, with a power factor of 1. The three-phase asynchronous motor can only reach 0.86,effectiveh)reducing line losses, achieving more significant energy saving under light load, and improving the utilization rate of the power grid.

2、在全负载状态下，同步无感永磁电机可以在小能耗下产出大气量，并且当负载率低于20%时，仍然能保证此效率同步无感永磁电机在整个气量调节速度范围内始终保持高达95%的运行效率。

At full load, the synchronous non inductive permanent magnet motor can produce the maximum air volume with minimal energyconsumption, and can stll ensure this efftciency even when the load rate is below 20%.The synchronous non inductive permanent magnetmotor maintains an operating efficiency of up to 95% throughout the entire air volume regulation speed range.
