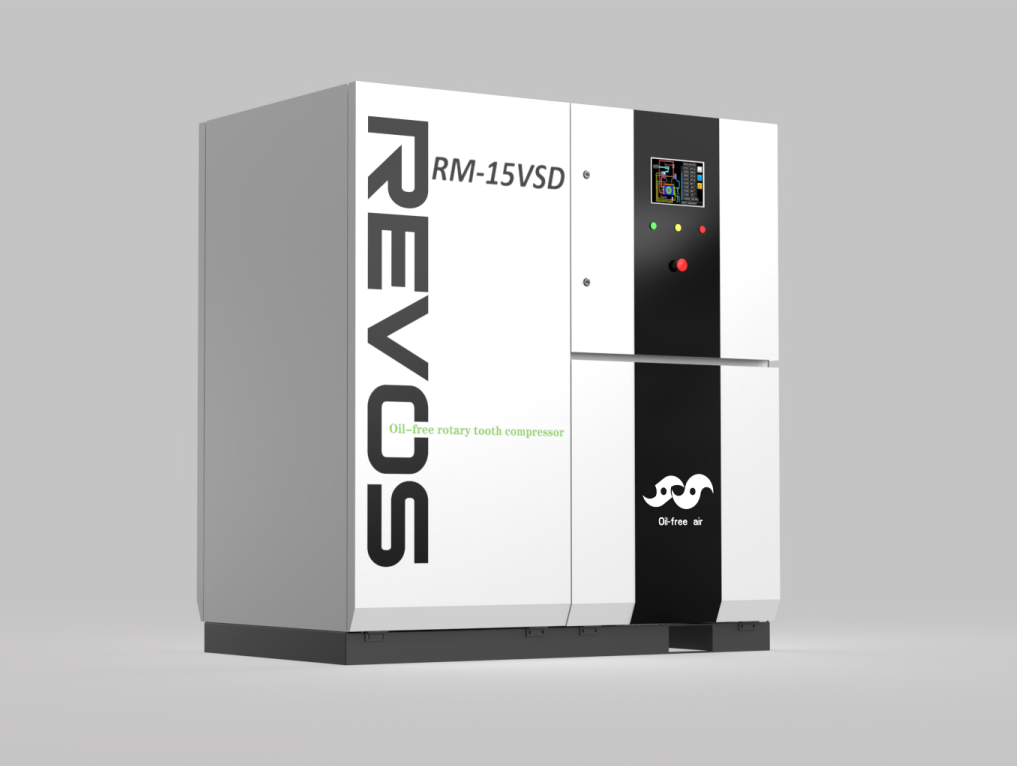

（RM-15VSD）15KW变频无油旋齿机

OIL-FREE ROTARY GEARAIR COMPRESSOR

干式无油旋齿空压机

工艺流程图Process Flow Chart

工作原理Working Principle

产品优势 Product Advantages

1、High Compression Efficiency压缩效率高

15-55KWV功率段无油旋齿空压机是业内公认的节能空压机。

Oilfree rotary gear air compressors witha power range of 15-55KW are recognized as the most energy-efficient compressors in the industry.

2、Outstanding Durability较高的耐久性

雌雄两个转子构成，非接触旋转无磨损，寿命长。

It is composed of two rotors, one maleand one female. It rotates non-contactwithout wear and has a long service life.

3、 Optional Variable Frequency Control可选配变频调控根据用户的使用习惯选配加装变频器，从而实现长时间的节能。According to the user's usage habits,frequency converters can be selectedand installed to achieve long-termenergy conservation

4、 Energy Conservation节能采用节能效果优越的负载、卸载及电机自动启停的双控制方式。减少无谓卸载运转。

It adopts a dual control mode with supe-rior energy-saving effects, includingload, unloading and automatic start andstop of the motor.

Reduce unnecessaryunloading operations.

5、Autonomous Diagnosis System自主诊断系统自主开发的自我诊断曲线监控系统，实时监测运行状态，并给出曲线数据，保证用户了解空压机实时状态。

The self-developed self-diagnostic curvemonitoring system monitors the operat-ing status in real time and providescurve data to ensurethat users under-stand the real-time status of the compressor.

6、Anhydrous, Sterile And Silicon-free无水无菌 无硅两级主机高温运行，杜绝一切真菌滋生，标配汽水分离系统，降低气体中更多的冷凝水。

The two-stage main unit operates athigh temperature to prevent the growthof all fungi It is equipped with a stan-dard steam-waterseparation system toreduce more condensate water in thegas.

驱动方式 Drive mode

联轴器连接齿轮箱增速The gearbox is connected by a coupling forspeed increase

电压 Voltage380V/50HZ
