（RS-75 AH VSD）75KW干式无油螺杆变频空压机

Dry oil-free variable frequency screw air compressor

干式无油变频螺杆空压机

无油主机，是一款通过德国TUVCLASS0无油认证的高环保、高能效的干式无油螺杆空压设备。The preferred oilfree main unit is a highly environmentally friendly and energy.eficient dry oilfreescrewair compressor that has passed the German T'V CLASS O oi-free certification.

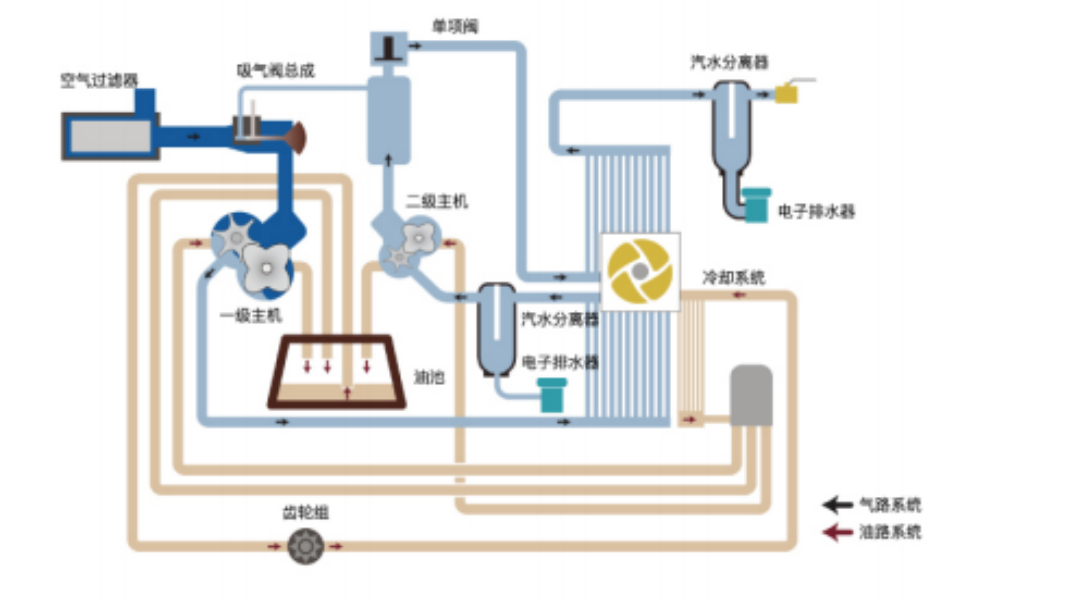

工艺流程图Process Flow Chart

产品优势 Product Advantages

1、不锈钢转子

Stainless steel rotor

采用耐腐蚀性与耐久性优秀的特殊不锈钢作为转子材料，转子齿面进行高精度研磨加工，并为进一步减少内部泄露，在考虑运行中产生的热膨胀实施了镜面加工，以确保转子间的最适间隙。

The rotor material is made of specialstainless steel with excellent corrosionresistance and durability, The toothsurface ofthe rotor undergoes high-precision grinding processing. To furtherreduce internal leakage, mirror finishingis carricd outconsidering the thermalexpansion generated during operation toensure the optimal gap between therotors.

2、超级涂层

Super coating

转子及壳体内壁Mo82+Tefon涂层，270C高温耐受，抗冲击能力强，不易脱落，耐水汽腐蚀，导热自润滑性能好。The rotor and the inner wall of thecasing are coated with MoS2 +Teflon.which can withstand a high temperatureof270'C,has strong impact resistance.is not easy to fall off,is resistant towater vapor corrosion,and has goodheat conductionand self-lubricationperforrance.

3、轴承、同步齿轮Bearings, synchronous gears

使用高效球轴承和滚珠轴承，内部采取喷射供油进行润滑，通过精密加工制造的同步齿轮确保转子间维持最适间隙。

High-efficiency ball bearings and ballbearings are used, with oil injection forlubrication inside. The synchronousgearsprecisely machined and manufactured ensure that the optimal clearanceis maintained between the rotors.

4、先进的监控系统

Bearings, synchronous gears

控制面板配备有10寸触摸式液晶显示器，可以实现各种工作参数的设定、故障白我诊断及记录检索，并随时显示空压机运行的工作温度和压力和提供数据采集、集控、远控、报警等功能。

The control panel is equipped with a10-inch touch LCD display, which can setvarious working parameters, self-diagnosefaults and retrieve records,It canalso display the working temperatureand pressure of the compressor opera-tion at anytime and provide functionssuch as data acquisition, centralizedcontrol, remote control and alarm.

5、独立油泵系统

Independent oil pump system

保证机器开机和停机时的润滑油压力保障机械部件的润滑，延长使用寿命，

Ensure the lubricating oil pressure whenthe machine starts up and stops to guarantee the lubrication ofmechanicalcomponents and extend their service life.

6、 汽水分离和感应式电子排水Steam-water separation andinductive electronic drainage

标配中间冷却器和后部冷却器的汽水分离系统以及感应式电子排水器，在不浪费压缩空气的同时，间歇性排出管路里的冷凝水，延长主机寿

命。

The standard steam-water separationsystem equipped with an intercooler anda rear cooler, as well as aninductiveelectronic drain, intermittently dischargethe condensate water in the pipelinewithout wasting compressed air,therebyextending the service life of the mainunit.
